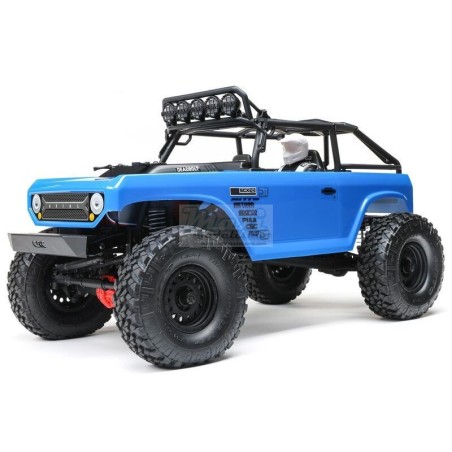

AXIAL SCX10 II Deadbolt 1/10 4WD RTR

Key Features

Realistic, durable steel C-channel chassis with cross braces for reinforcement and rigidity

Single-piece AR44 front and rear axles with molded truss for extreme durability

LCX AX10 transmission with adjustable gearing ratio for super high speed or competition-level crawling speed

Universal joint axles allowing up to 45° of steering and providing an efficient, high-performance drivetrain

Optimized gear ratio of 3.75 that reduces torque twist

In The Box

(1) 1/10 SCX10 II Deadbolt 4WD Brushed RTR

(1) Spektrum™ SLT2 2.4GHz Radio System

(1) Dynamite® 35-Turn 540 Brushed Motor

(1) Spektrum 40A Brushed ESC with IC3® Connector

(1) Spektrum SLR300 3-Channel SLT™ FHSS 2.4GHz Receiver

(1) Spektrum S614 Waterproof Metal Gear Surface Servo, 23T

(1) Product Manual

(4) AA Transmitter Batteries

Needed to Complete

(1) 2-3S LiPo Battery with EC3™ or IC3™ connector

(1) Compatible Battery Charger

Features

Realistic, durable steel C-channel chassis with cross braces for reinforcement and rigidity

Single-piece AR44 front and rear axles with molded truss for extreme durability

High pinion design that adds ground clearance, improves driveshaft angles, and increases gear surface contact

LCX AX10 transmission with adjustable gearing ratio for super high speed or competition-level crawling speed

Universal joint axles allowing up to 45° of steering and providing an efficient, high-performance drivetrain

Optimized gear ratio of 3.75 that reduces torque twist

Hypoid-cut metal gears

Larger load rated bearings for durability

8° Kingpin axle that eliminates tire scrub

10° Increment adjustments for knuckle carriers and straight axle adapters

Chassis mounted servo with adjustable servo mounting system

Oil-filled, coilover shocks with threaded shock bodies

Licensed CRC front bumper

3-piece WB8 HD Wildboar front and rear driveshafts with strengthened slider-floater tube to reduce flex and fatigue

Easy-access, water-resistant receiver box
