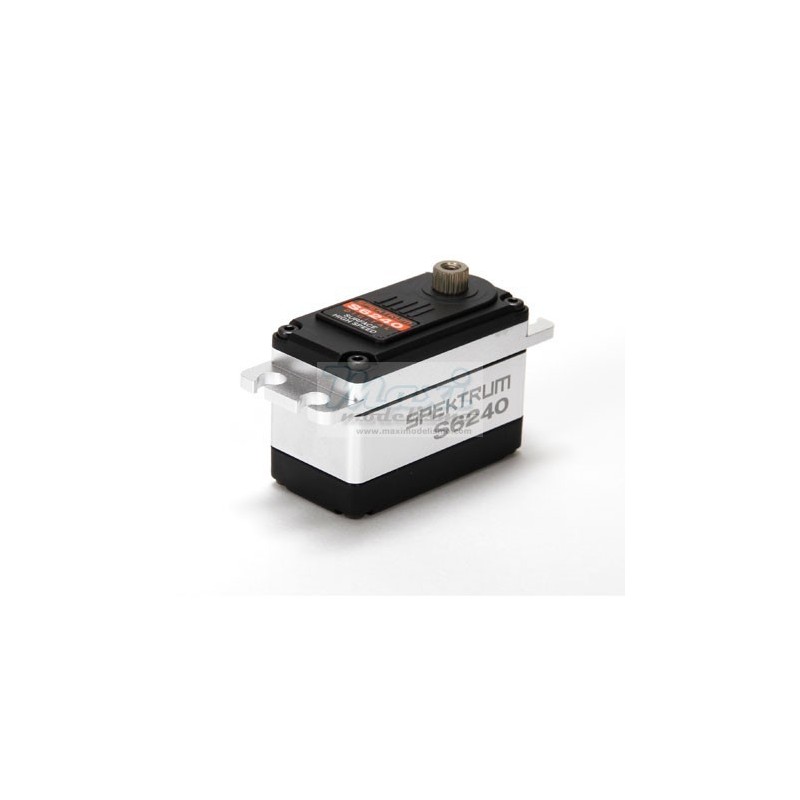

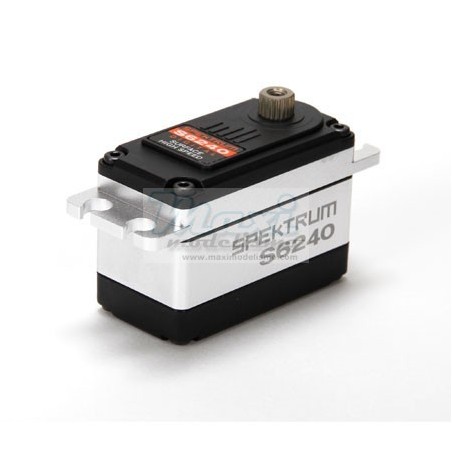

SERVO SPEKTRUM S6240
101,50 €
Com IVA
Pagamento Seguro
Política de entrega
Troca ou devolução até 14 dias
Overview
The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 offer high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited. The S6250 HV and S6260 HV are standard size servos for High-Voltage applications up to 8.4V, And the S6280 HV and S6290 HV feature all metal case construction for the ultimate 1/8th scale performance. All these servos feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.
Key Features
- Removable wire harness with different lengths available
7075 Aluminum hard anodized output shaft/main gear with steel internal gears
Aluminum case for good heat dissipation
Aluminum mounting tabs
NMB dual main bearings
23T output shaft
Waterproof
1-Year Limited Warranty
Application:1/10 Buggy, Truck, On-Road
Bearing:Dual
Bushing Or Bearing:Bearing
Connector Type:Z-Connector
Connector Wire Gauge:22 AWG
Connector Wire Length:7.87 in (200mm)
Current Draw Idle:9.8 mA @ 6.0V
Current Draw Stall:4.9A @ 6.0V
Deadband:4µs
Gear Material:Steel,Aluminum
Gear Type:Metal
Height:1.18 in (30mm)
Length:1.61 in (41mm)
Motor Type:Coreless
Programmable:No
Rotation Range:120°
Servo Operating Voltage:6.0V
Servo Type:Digital
Speed:0.08 sec/60 deg @ 6.0V
Spline Count:23 Teeth
Torque:208 oz-in (15.0kg-cm) @ 6.0V
Type:S6240 High Speed, Digital
Weight:2.1 oz (59.5g)
Width:0.82 in (20.9mm)
